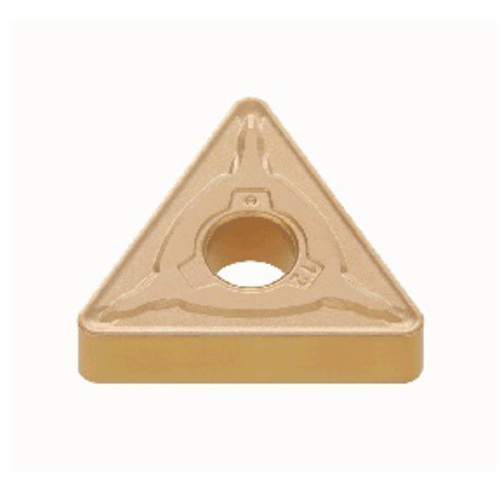

TNMG 433 THS T9225
Turning Insert; TNMG433THS T9225 ; 0.866″ Length ; 1/2″ IC ; 0.047″ Corner Radius ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.4331″ |
| Cutting Edge Length (L) | 0.866″ | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0393 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | THS |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.702″ |
Product Features
| Family Description | Negative relief ang., M class, triangular insert, for mediumto heavy cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.024
