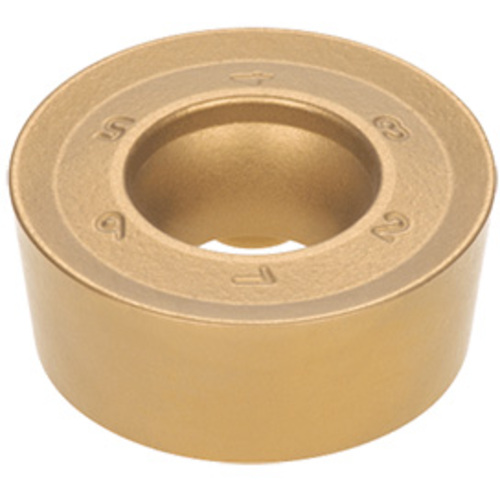

RCMT1204M0-6RM T9225
Turning Insert; RCMT1204M0-6RM T9225 ; 0.472″ Length ; 0.472″ IC ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0394″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.2362″ | Min. Turning Feed (ft(min)) | 0.0197 ″/rev |
| Cutting Edge Length (L) | 0.472″ | Max. Turning Feed (ft(max)) | 0.0394 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.472″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | 6RM |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.236″ |
| Tool Type | Square Shank Turning Tools |
Product Features
| Family Description | Positive 7deg relief ang., M class, round insert, for general use. 6 indexes are available. | Country of Origin | Japan |
Shipping Info
Package Weight
0.08
