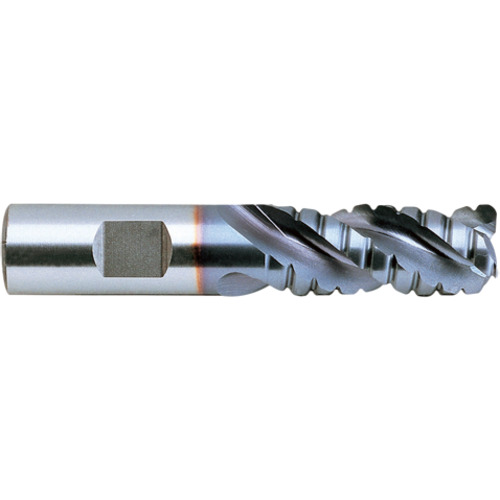

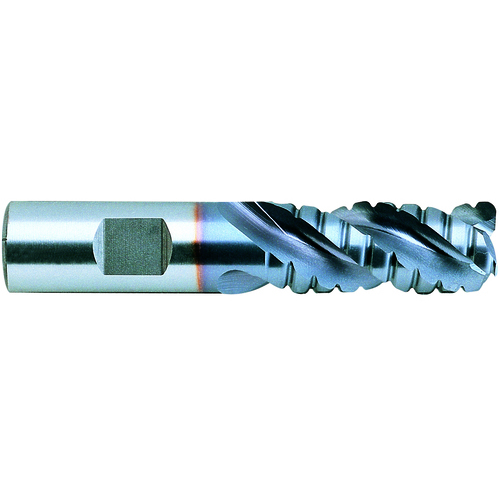

Corner Radius End Mill; 1″ Dia. × 4″ LOC × 1″ Shank Dia. × 6-1/2″ OAL ; 3 FL ; T15 ; TiCN ; Series EK192
| Cutting Diameter (DC) | 1″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.09″ |
| Depth of Cut Maximum (APMX) | 4″ | Tool Type | Corner Radius 42 Degree Helix Long Length Roughing for Aluminum |
| Overall Length (OAL) | 6-1/2″ | Length Group | Long |
| Cutting Edge Material | HSS-T15 | Flute Type | Roughing |
| Coating | TiCN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | EK192 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
7.25
Package Width
1.5
Package Height
1.5
Package Weight
0.128
