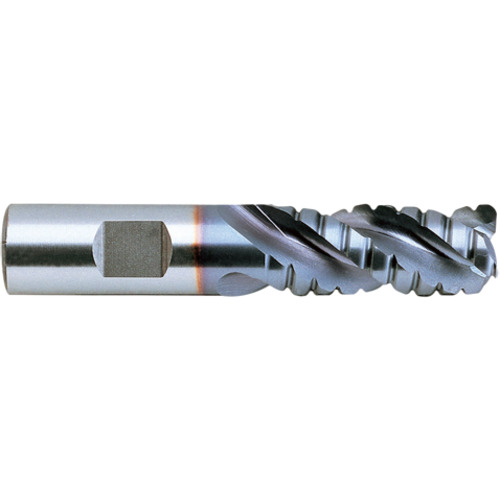

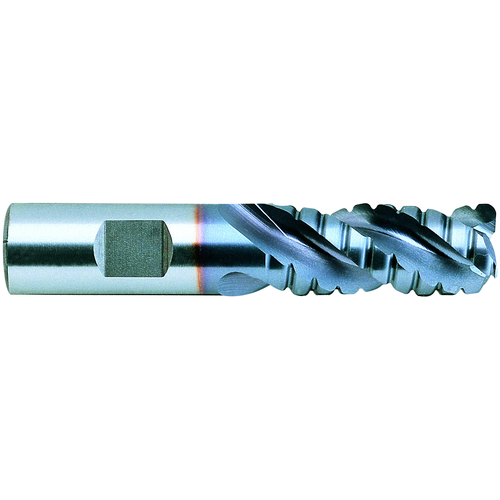

Square End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 3 FL ; T15 ; Bright ; Series EK191
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 3 FL ; HSS-T15 ; Uncoated ; Series EK191
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Square End 42 DegreeFinishing with Extended Neck |
| Overall Length (OAL) | 3-1/4″ | Length Group | Medium |
| Cutting Edge Material | HSS-T15 | Flute Type | Roughing |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | EK191 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.161
