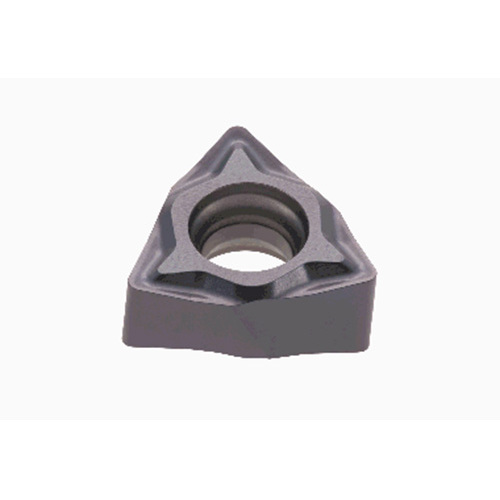

WXGU 222L TSW AH8015
Turning Insert; WXGU040308L-TSW AH8015 ; 1/4″ IC ; 0.031″ Corner Radius ; Carbide ; Left Hand ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0118″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Left Hand |
| Coating | AlTiN | Chip Breaker Type | MFT-TSW |
| Grade | AH8015 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.106″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.128″ |
Product Features
| Family Description | Double sided trigon wiper inserts with TSW chipbreaker for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.042
