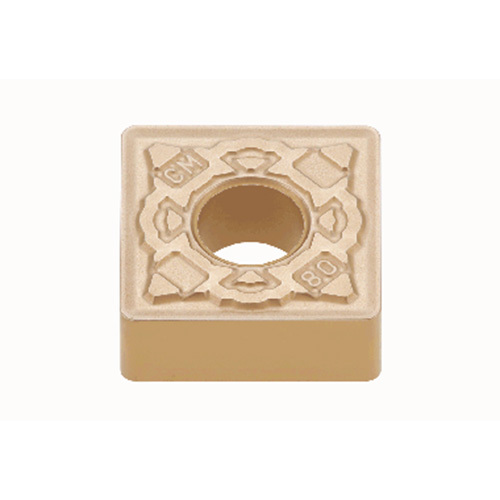

SNMG 432 CM T515
Turning Insert; SNMG 432 CM T515 ; 1/2″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0393″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.1969″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-CM |
| Coating | TiCN+Al2O3 | Measurement Type | Inch |
| Grade | T515 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.469″ |
Product Features
| Family Description | Negative relief ang., M class, square insert, for medium cutting of grey and ductile cast iron | Country of Origin | Japan |
Shipping Info
Package Weight
0.005
