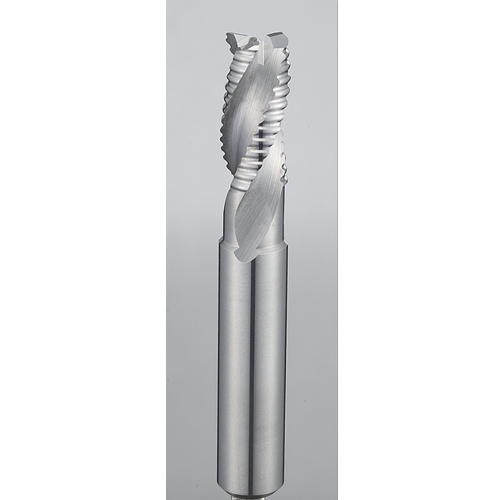

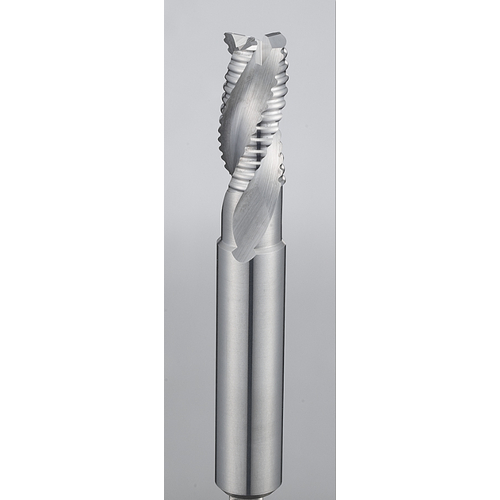

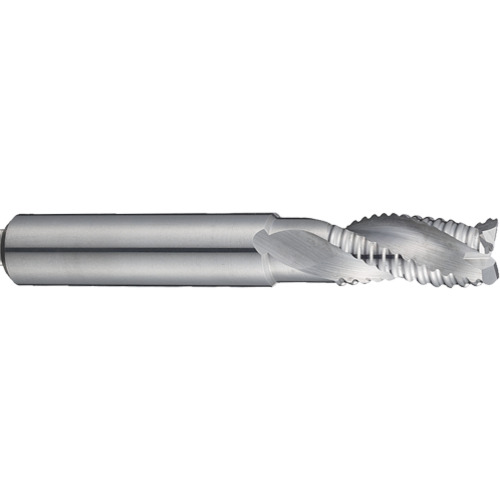

Square End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-3/4″ OAL ; 3 FL ; Carbide ; Bright ; Series E5E98
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Application | Roughing |
| Overall Length (OAL) | 3-3/4″ | Tool Type | Square End Roughing with Neck |
| Cutting Edge Material | Carbide | Flute Type | Roughing |
| Coating | Uncoated | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | E5E98 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.4935
