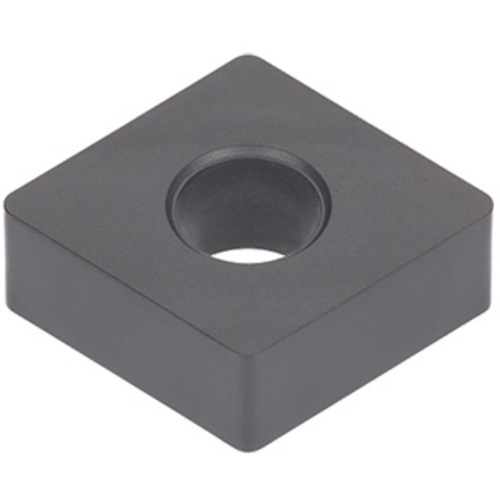

CNMA 334E T515
Turning Insert; CNMA 334E T515 ; 0.382″ Length ; 3/8″ IC ; 0.063″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0019″ |
| Corner Radius (RE) | 0.0629″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.382″ | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0314 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | FT |
| Coating | TiCN+Al2O3 | Measurement Type | Inch |
| Grade | T515 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
