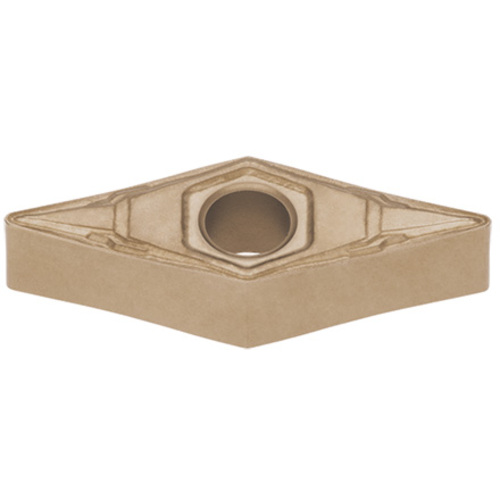

VNMG 2.331E TSF GT9530
Turning Insert; VNMG 2.331E-TSF GT9530 ; 0.492″ Length ; 0.281″ IC ; 0.016″ Corner Radius ; Cermet ; Neutral ; TiCNO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0078″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.492″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 0.281″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Nega-TSF |
| Coating | TiCNO | Measurement Type | Inch |
| Grade | GT9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for finishing | Country of Origin | Japan |
