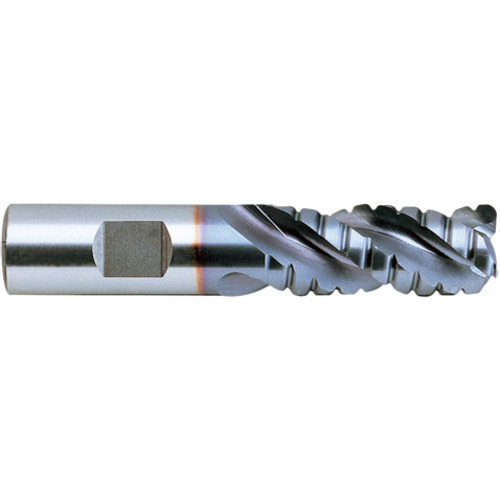

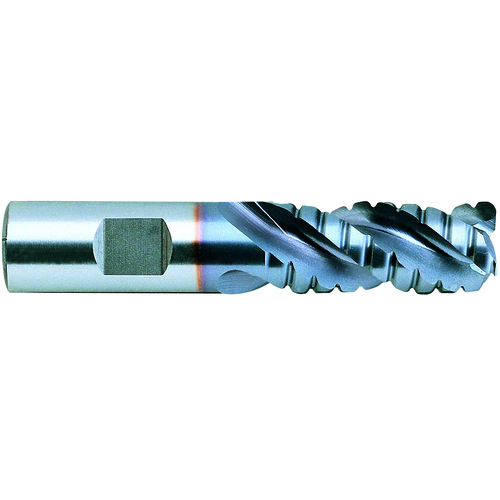

Square End Mill; 1-1/2″ Dia. × 3″ LOC × 1-1/4″ Shank Dia. × 5-1/2″ OAL ; 3 FL ; T15 ; Bright ; Series EK226
| Cutting Diameter (DC) | 1-1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 3″ | Tool Type | Square End 42 Degree Helix & Medium Length Roughing for Aluminum |
| Overall Length (OAL) | 5-1/2″ | Length Group | Medium |
| Cutting Edge Material | HSS-T15 | Flute Type | Roughing |
| Coating | Uncoated | Decimal Equivalent | 1.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | EK226 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
2
Package Height
2
Package Weight
1.707
