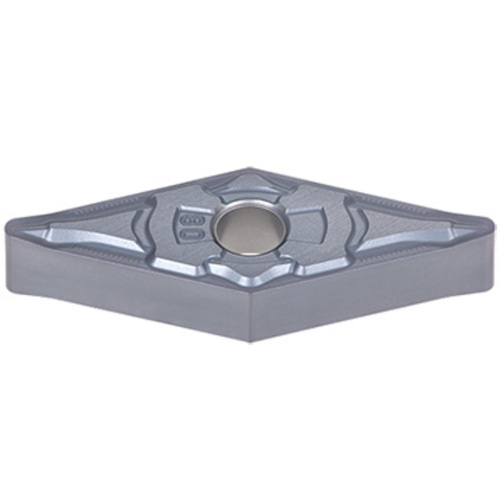

VNMG 332 HRF AH8015
Turning Insert; VNMG332-HRF AH8015 ; 0.654″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0078″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | HRF-R08 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8015 | Cutting Edge Effective Length (LE) | 0.544″ |
| Fixing Hole Diameter (D1) | 0.15″ |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for finishing of super alloy | Country of Origin | Japan |
Shipping Info
Package Weight
0.027
