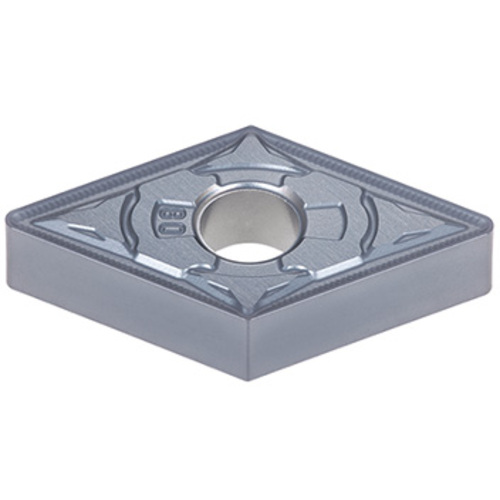

DNMG 443 HRM AH8005
Turning Insert; DNMG443-HRM AH8005 ; 0.61″ Length ; 1/2″ IC ; 0.047″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1575″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.61″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | HRM-R12 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8005 | Cutting Edge Effective Length (LE) | 0.495″ |
| Fixing Hole Diameter (D1) | 0.203″ |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for medium cutting to finishing of super alloy | Country of Origin | Japan |
Shipping Info
Package Weight
0.042
