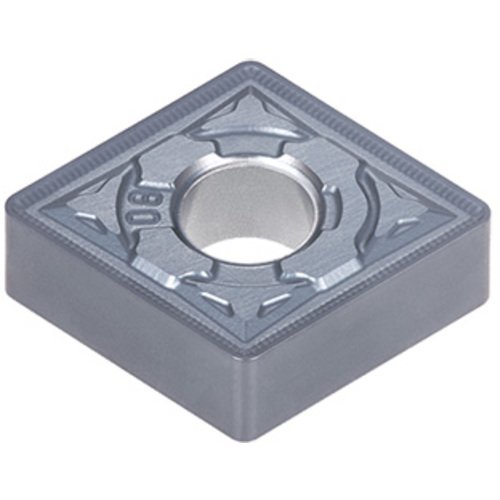

CNMG 644 HRM AH8005
Turning Insert; CNMG644-HRM AH8005 ; 0.76″ Length ; 3/4″ IC ; 0.063″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1575″ |
| Corner Radius (RE) | 0.0629″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.76″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Chip Breaker Type | HRM-R16 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | AH8005 | Cutting Edge Effective Length (LE) | 0.634″ |
| Fixing Hole Diameter (D1) | 0.312″ |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium cutting to finishing of super alloy | Country of Origin | Japan |
Shipping Info
Package Weight
0.071
