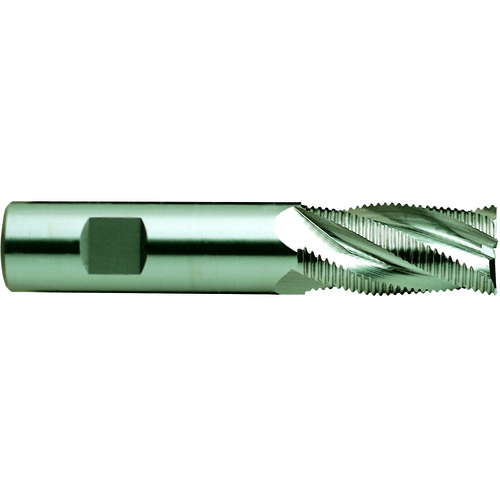

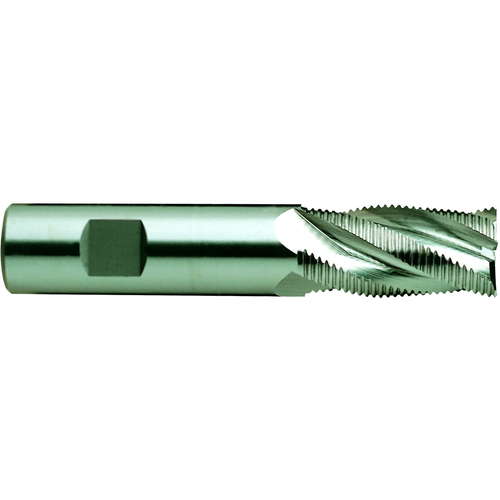

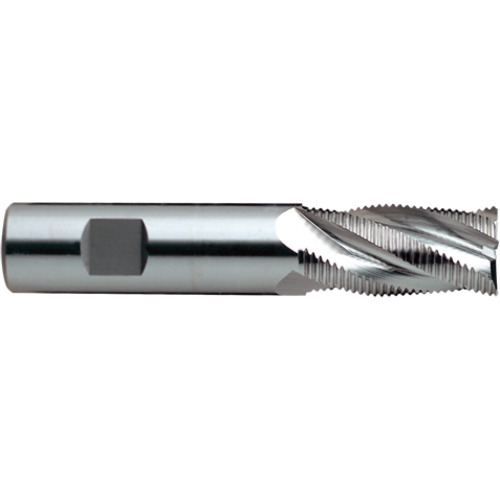

Square End Mill; 9/16″ Dia. × 1-3/8″ LOC × 1/2″ Shank Dia. × 3-3/8″ OAL ; 4 FL ; HSSCo8 ; Bright ; Series E2085
SQ End Mill; 9/16″ Dia. × 1-3/8″ LOC × 1/2″ Shank Dia. × 3-3/8″ OAL ; 4 FL ; HSSCo8 ; Uncoated ; Series E2085
| Cutting Diameter (DC) | 9/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1-3/8″ | Tool Type | HSSCo8 4 Flute Regular Length Fine Pitch Center Cutting |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Roughing |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 0.5625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E2085 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.212
