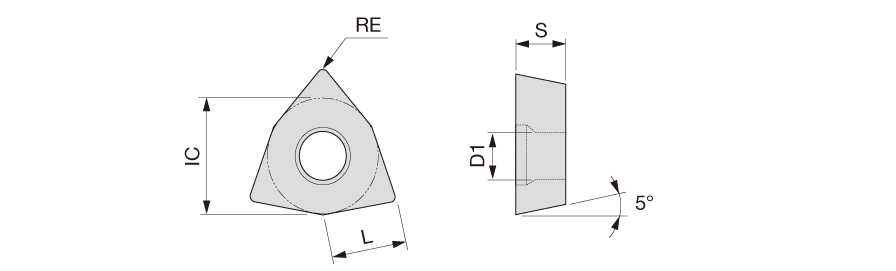

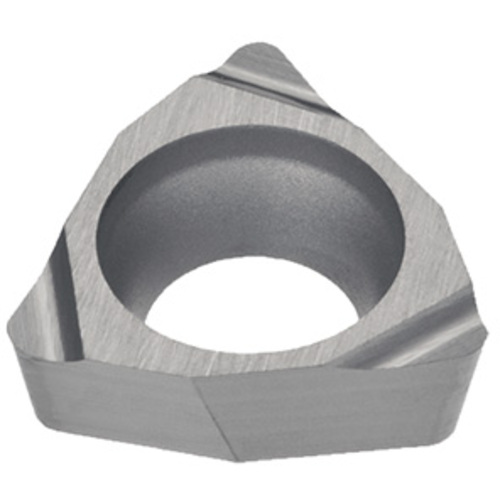

WBGT 520.5 FL-W08 SH725
Turning Insert; WBGT 520.5 FL-W08 SH725 ; 0.134″ Length ; 0.156″ IC ; 0.008″ Corner Radius ; Carbide ; Left Hand

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.0079″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.134″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.063″ | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 0.156″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | W08 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.091″ | Cutting Edge Effective Length (LE) | 0.068″ |
| Tool Type | Turn Positive Inserts |

Product Features
| Family Description | Positive 5 deg relief angle, G class, trigon insert, lead type chipbreaker for finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.003
