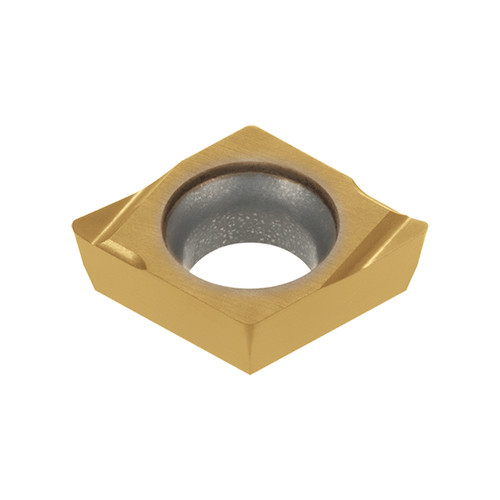

EPGT 521 FL-J08 SH725
Turning Insert; EPGT 521 FL-J08 SH725 ; 0.161″ Length ; 0.156″ IC ; 0.016″ Corner Radius ; Carbide ; Left Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |

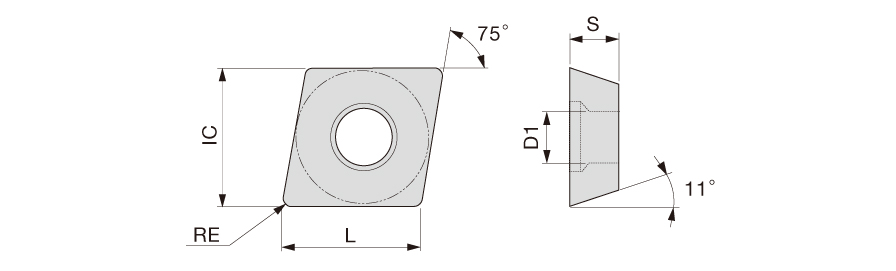

| Corner Radius (RE) | 0.016″ | Depth of Cut Maximum (APMX) | 0.0394″ |
| Cutting Edge Length (L) | 0.161″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Insert Thickness (S) | 0.063″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Inscribed Circle Diameter (IC) | 0.156″ | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN | Chip Breaker Type | J08 |
| Grade | SH725 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.091″ | Body Material | Carbide |
Product Features
| Family Description | Positive 11 deg relief angle, G class, 75 deg rhombic insert, for finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.003
