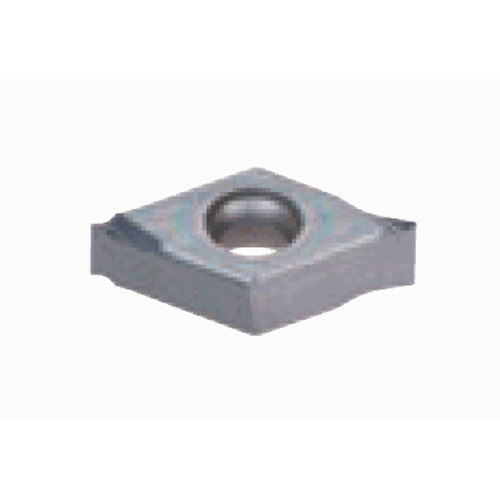

DXGU 220MFRE JRP SH725
Turning Insert; DXGU 220 MFRE-JRP SH725 ; 0.307″ Length ; 1/4″ IC ; 0.004″ Corner Radius ; Carbide ; Right Hand
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.0059″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.0039″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.307″ | Max. Turning Feed (ft(max)) | 0.0031 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | MFT-JRP |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.106″ | Cutting Edge Effective Length (LE) | 0.296″ |
Product Features
| Family Description | Double sided 55deg rhombic inserts with JRP chipbreaker for finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.007
