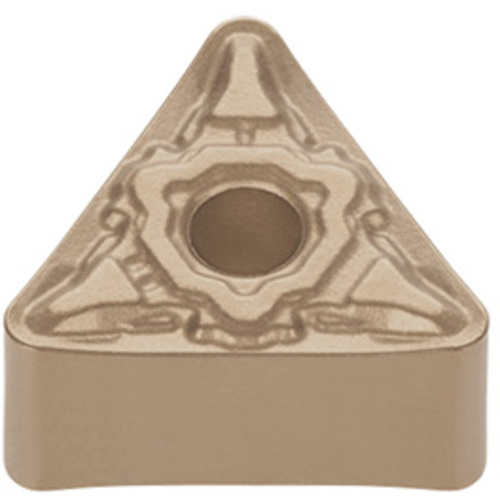

TNMG 232E TSF NS9530
Turning Insert; TNMG 232E-TSF NS9530 ; 0.433″ Length ; 1/4″ IC ; 0.031″ Corner Radius ; Cermet ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.433″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Nega-TSF |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.089″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Negative relief ang., M class, triangular insert, for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
