CNGD120716 FX105
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 3 mm |

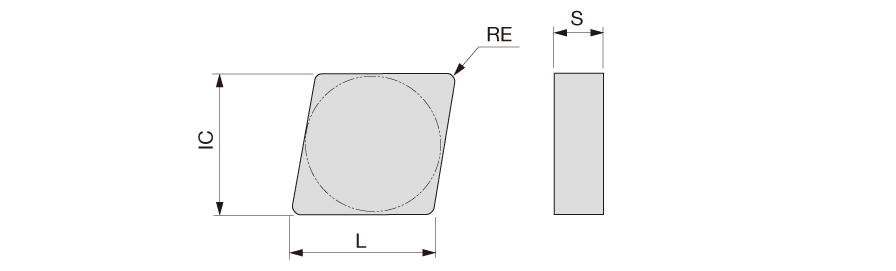

| Corner Radius (RE) | 1.6 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Insert Thickness (S) | 7.94 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-FX105 |
| Cutting Edge Material | Ceramic | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | FX105 | Cutting Edge Effective Length (LE) | 9.65 mm |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | DimpleFX series, Negative relief ang., G class, 80deg rhombic ceramic insert with dimple for cast iron cutting | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.117
