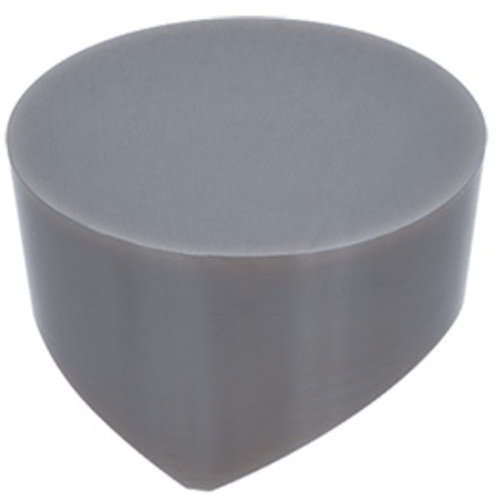

RCGX 450-E TS300
Turning Insert; RCGX120700-E TS300 ; 1/2″ Length ; Neutral
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 1/4″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Ceramic | Chip Breaker Type | FT-TS300 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TS300 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Cutting Edge Effective Length (LE) | 1/4″ |
Product Features
| Family Description | Positive relief ang., round ceramic insert without chipbreaker for machining high temperature alloy | Country of Origin | S.Korea |

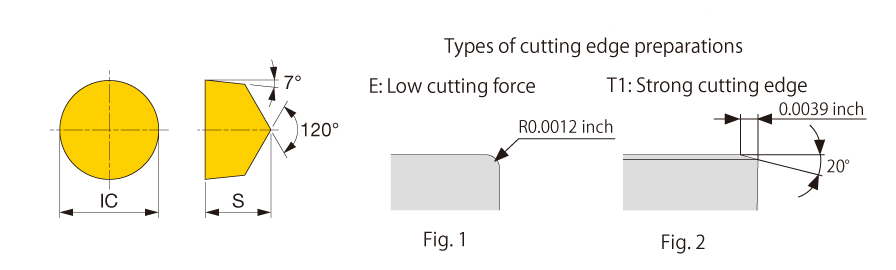

| Remarks | The last letter of designation means types of cutting edge preparations as below. E: Low cutting force type T1: Strong cutting edge type |
