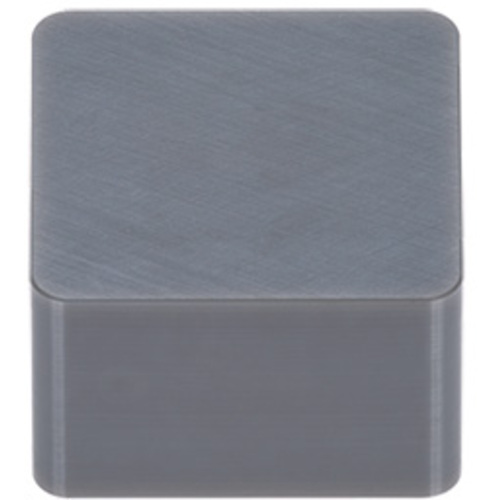

SNGN 453-T1 TS300

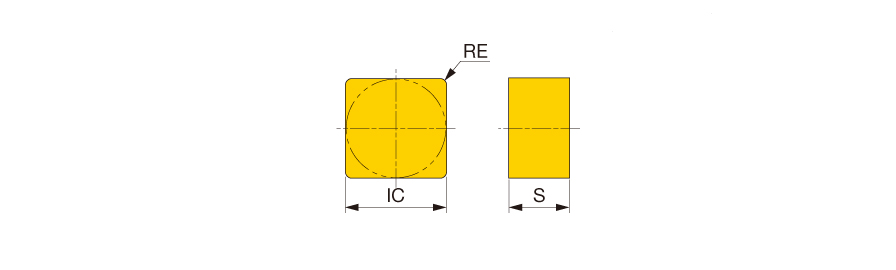

Turning Insert; SNGN 453-T1 TS300 ; 1/2″ Length ; 1/2″ IC ; 0.047″ Corner Radius ; Neutral
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | FT-TS300 |
| Cutting Edge Material | Ceramic | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TS300 | Cutting Edge Effective Length (LE) | 0.453″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, square ceramic insert without chipbreaker for machining high temperature alloy | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.999
