VNGD 353 FX105

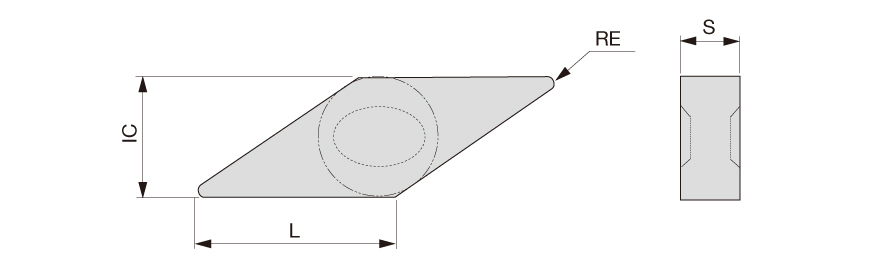

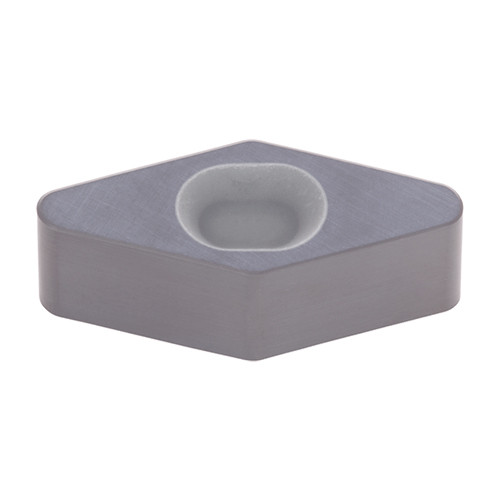

Turning Insert; VNGD 353 CERAMIC FX105 ; 0.654″ Length ; 3/8″ IC ; 0.047″ Corner Radius ; Ceramic ; Neutral
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.654″ | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Insert Thickness (S) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | FT-FX105 |
| Cutting Edge Material | Ceramic | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | FX105 | Cutting Edge Effective Length (LE) | 0.489″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | DimpleFX series, Negative relief ang., G class, 35deg rhombic ceramic insert with dimple for cast iron cutting | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.015
