TDSU1375-02

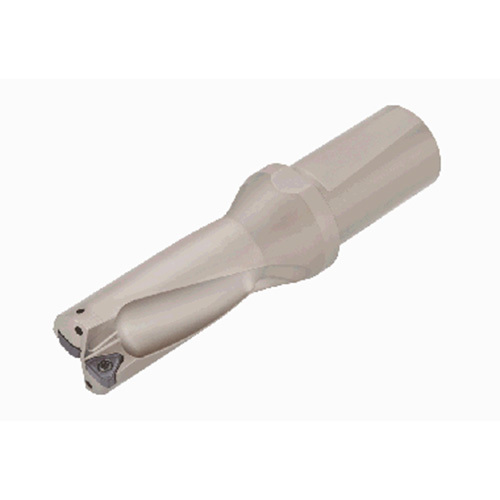

Indexable Insert Drill; 1-3/8″ Dia. × 2.801″ LU × 1-1/2″ Shank Dia. × 7.1″ OAL ; Steel

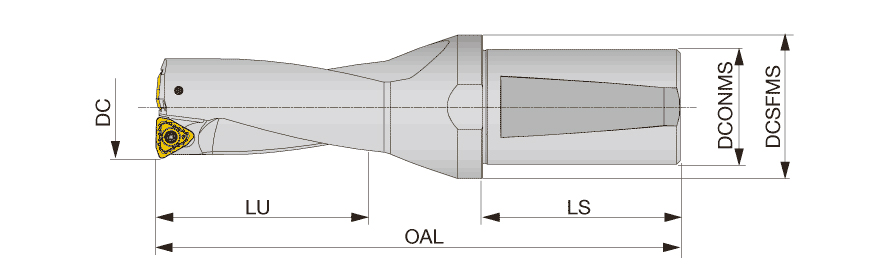

| Cutting Diameter (DC) | 1-3/8″ | Cutting Diameter Minimum (DCN) | 1-3/8″ |
| Usable Length (LU) | 2.801″ | Cutting Diameter Maximum (DCX) | 1-3/8″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.969″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Point Length (PL) | 0.051″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2.688″ | Master Insert Identification (MIID) | WWMU09X510R-DJ |
| Functional Length (LF) | 4.361″ | Body Material | Steel |
| Overall Length (OAL) | 7.1″ | Decimal Equivalent | 1.375″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=2, Whistle notch | Country of Origin | Japan |
Shipping Info
Package Weight
2.809
