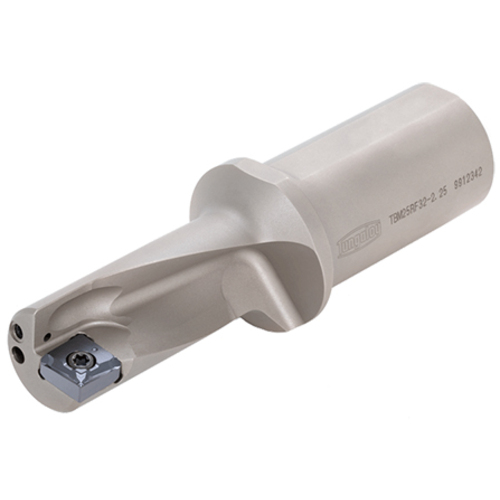

TBM18RF254-2.25
Indexable Insert Drill; 0.709″ Dia. × 1.594″ LU × 1″ Shank Dia. × 4.404″ OAL ; Steel

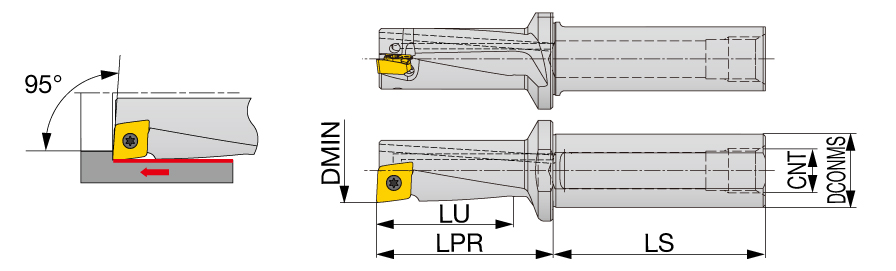

| Cutting Diameter (DC) | 0.709″ | Overall Length (OAL) | 4.404″ |
| Usable Length (LU) | 1.594″ | Measurement Type | Inch |
| Application | | Multi Functional tools | | Master Insert Identification (MIID) | XOMU09T304-PS |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Shank Length (LS) | 2.28″ | Decimal Equivalent | 0.709″ |
| Functional Length (LF) | 2.124″ |

Product Features
| Family Description | Multifunctional tool for drilling and turning | Country of Origin | Japan |
Shipping Info
Package Weight
0
