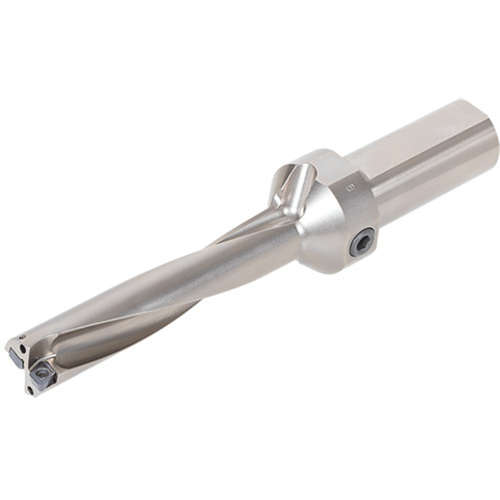

TDXU-1875FS-05
Indexable Insert Drill; 1-7/8″ Dia. × 9.436″ LU × 1-1/2″ Shank Dia. × 13-5/8″ OAL ; Steel

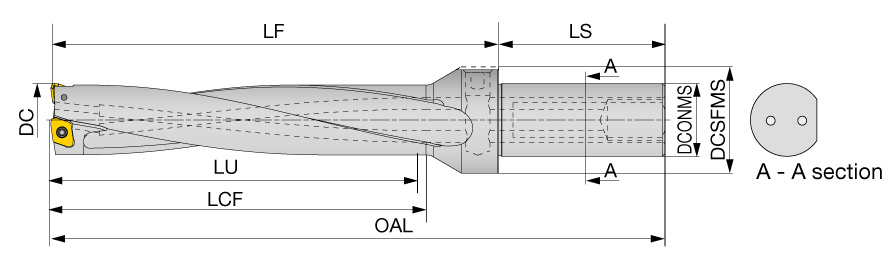

| Cutting Diameter (DC) | 1-7/8″ | Cutting Diameter Minimum (DCN) | 1-7/8″ |
| Usable Length (LU) | 9.436″ | Cutting Diameter Maximum (DCX) | 1-7/8″ |
| Application | | General Drilling | | Flange Diameter (DF) | 2.165″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Point Length (PL) | 0.061″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2.688″ | Master Insert Identification (MIID) | XPMT150512R-DJ |
| Length Chip Flute (LCF) | 9.55″ | Body Material | Steel |
| Functional Length (LF) | 10.876″ | Decimal Equivalent | 1.875″ |
| Overall Length (OAL) | 13-5/8″ |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills with side & rear coolant port, L/D = 5, Flat cotter | Country of Origin | JAPAN |

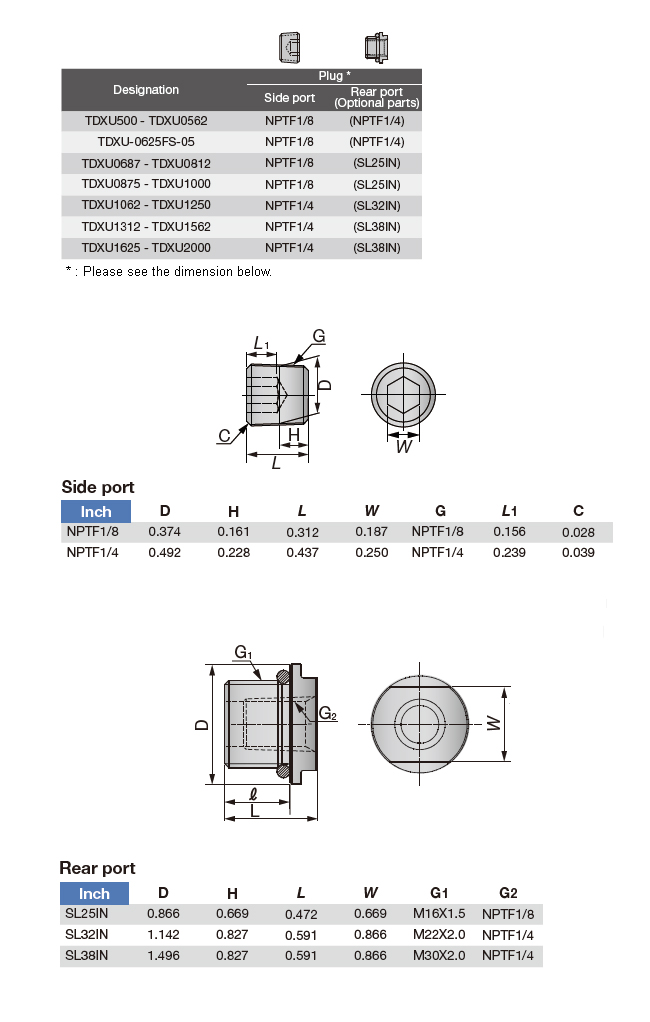

| Remarks | For plug of side and rear port, click on "More Info". |
Shipping Info
Package Weight
0.000
