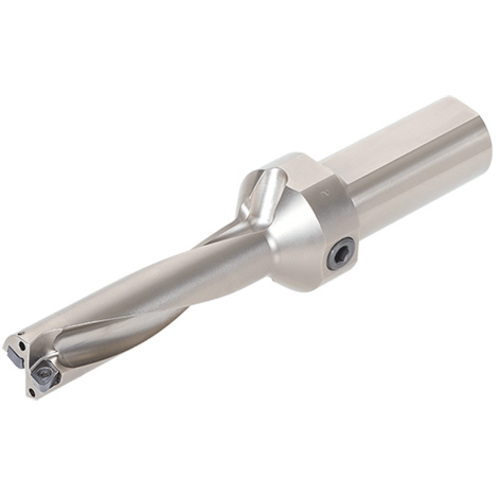

TDXU-1125FS-04
Indexable Insert Drill; 1-1/8″ Dia. × 4.529″ LU × 1-1/4″ Shank Dia. × 8.1″ OAL ; Steel

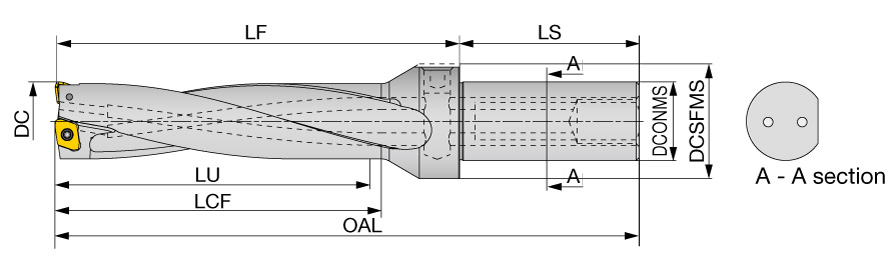

| Cutting Diameter (DC) | 1-1/8″ | Cutting Diameter Minimum (DCN) | 1-1/8″ |
| Usable Length (LU) | 4.529″ | Cutting Diameter Maximum (DCX) | 1-1/8″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.029″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2.28″ | Master Insert Identification (MIID) | XPMT08T308R-DJ |
| Length Chip Flute (LCF) | 4.65″ | Body Material | Steel |
| Functional Length (LF) | 5.791″ | Decimal Equivalent | 1.125″ |
| Overall Length (OAL) | 8.1″ |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills with side & rear coolant port, L/D = 4, Flat cotter | Country of Origin | Japan |

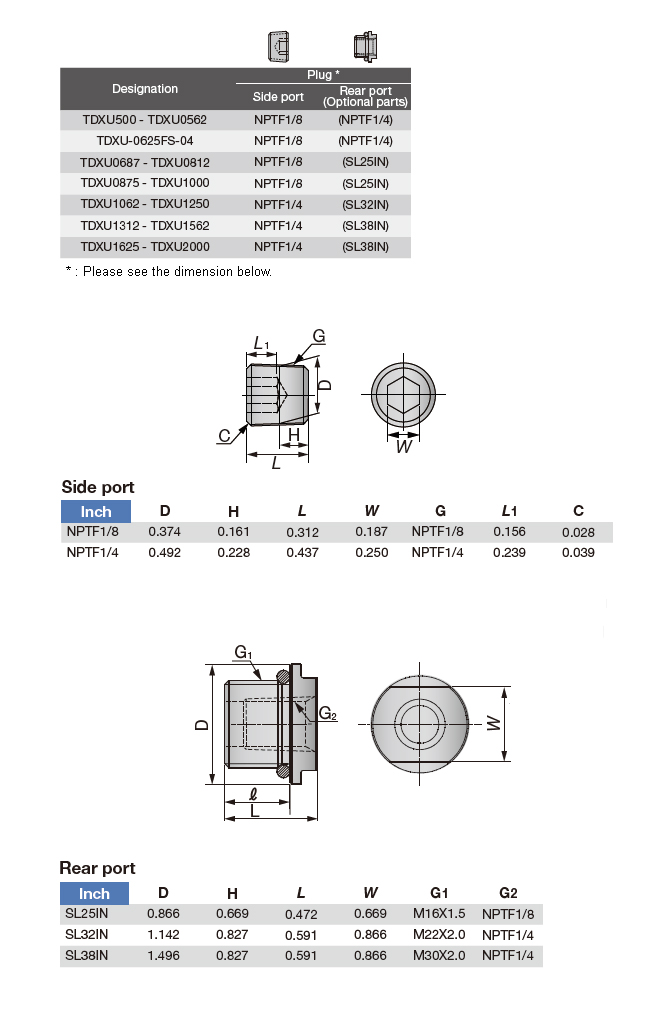

| Remarks | For plug of side and rear port, click on "More Info". |
