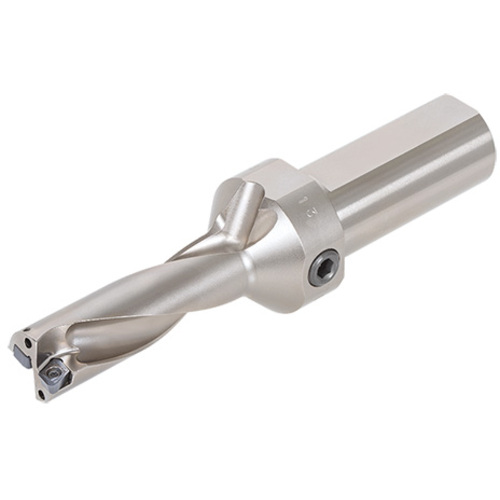

TDXU-0875FS-03
Indexable Insert Drill; 7/8″ Dia. × 2.648″ LU × 1″ Shank Dia. × 6.027″ OAL ; Steel

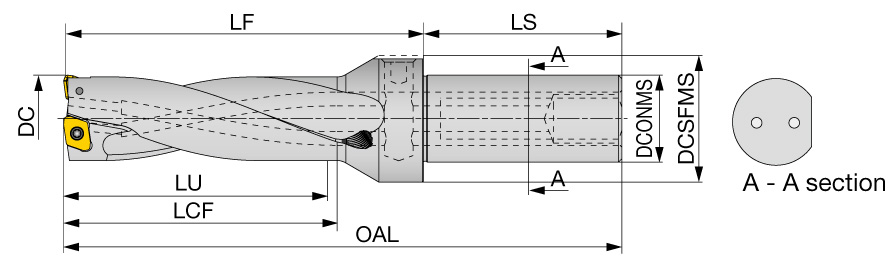

| Cutting Diameter (DC) | 7/8″ | Cutting Diameter Minimum (DCN) | 7/8″ |
| Usable Length (LU) | 2.648″ | Cutting Diameter Maximum (DCX) | 7/8″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.457″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.023″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2.28″ | Master Insert Identification (MIID) | XPMT07H308R-DJ |
| Length Chip Flute (LCF) | 2.77″ | Body Material | Steel |
| Functional Length (LF) | 3.724″ | Decimal Equivalent | 0.875″ |
| Overall Length (OAL) | 6.027″ |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills with side & rear coolant port, L/D = 3, Flat cotter | Country of Origin | Japan |

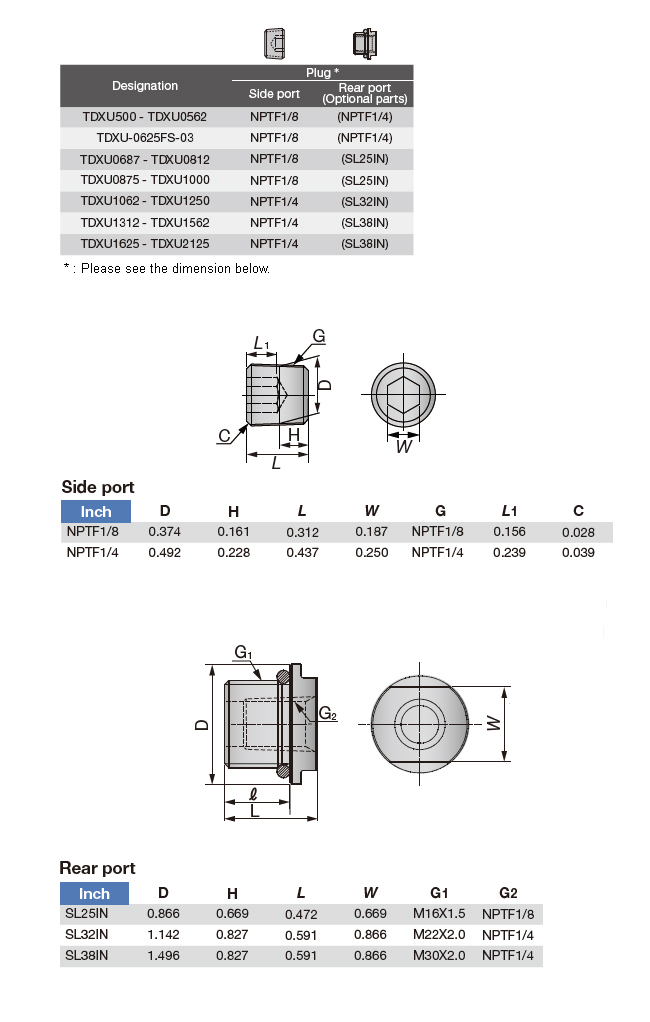

| Remarks | For plug of side and rear port, click on "More Info". |
Shipping Info
Package Weight
0
