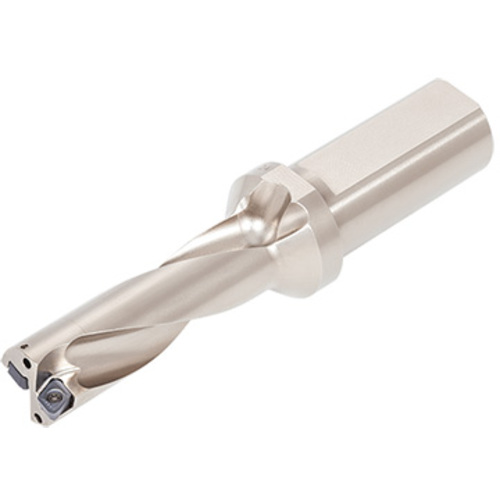

TDX380F40-3
Indexable Insert Drill; 38 mm Dia. × 115.1 mm LU × 40 mm Shank Dia. × 216.7 mm OAL ; Steel

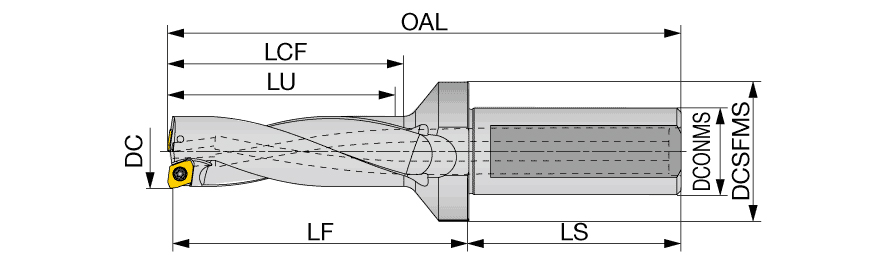

| Cutting Diameter (DC) | 38 mm | Overall Length (OAL) | 216.7 mm |
| Usable Length (LU) | 115.1 mm | Cutting Diameter Minimum (DCN) | 38 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 38 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Flange Diameter (DF) | 50 mm |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 1.08 mm |
| Shank Length (LS) | 69 mm | Measurement Type | Metric |
| Length Chip Flute (LCF) | 119.7 mm | Master Insert Identification (MIID) | XPMT110412R-DJ |
| Functional Length (LF) | 146.6 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=3, Flat cotter | Country of Origin | Japan |
Shipping Info
Package Weight
3.418
