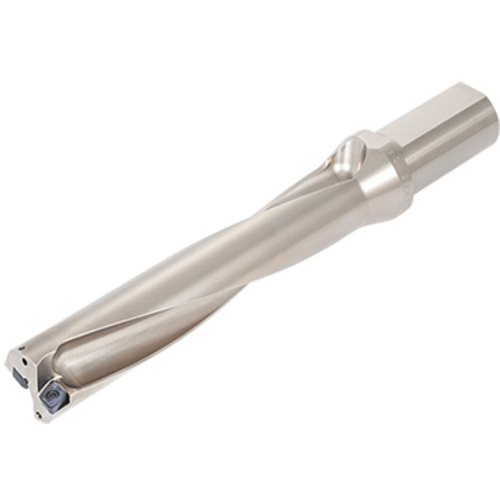

TDX200F25-5
Indexable Insert Drill; 20 mm Dia. × 100.5 mm LU × 25 mm Shank Dia. × 175.5 mm OAL ; Steel

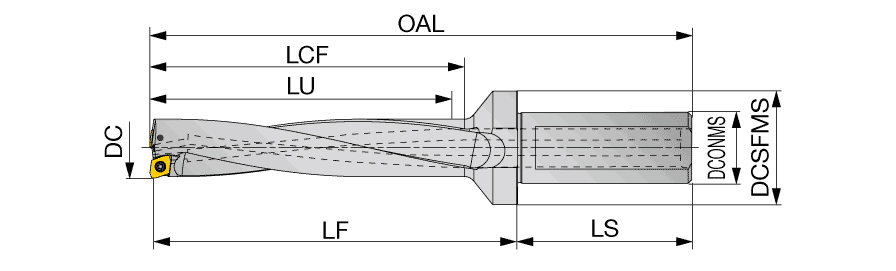

| Cutting Diameter (DC) | 20 mm | Overall Length (OAL) | 175.5 mm |
| Usable Length (LU) | 100.5 mm | Cutting Diameter Minimum (DCN) | 20 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Flange Diameter (DF) | 32 mm |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.49 mm |
| Shank Length (LS) | 54 mm | Measurement Type | Metric |
| Length Chip Flute (LCF) | 104.5 mm | Master Insert Identification (MIID) | XPMT06X308R-DJ |
| Functional Length (LF) | 121 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=5, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.010
