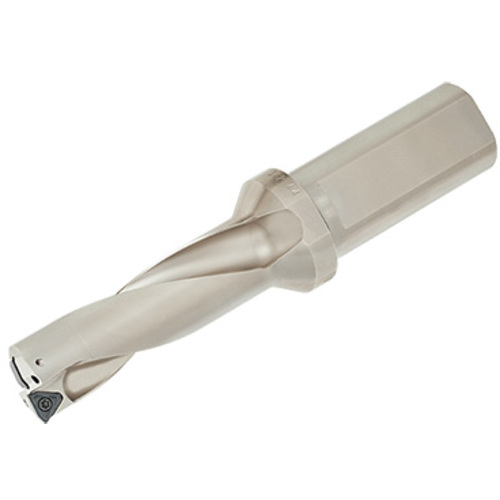

TDS510F40-3
Indexable Insert Drill; 51 mm Dia. × 154.8 mm LU × 40 mm Shank Dia. × 264.8 mm OAL ; Steel

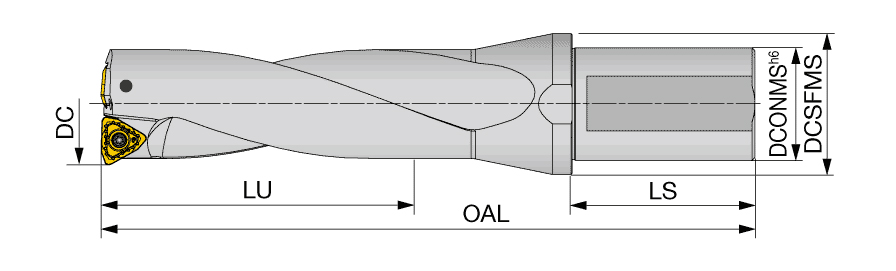

| Cutting Diameter (DC) | 51 mm | Cutting Diameter Minimum (DCN) | 51 mm |
| Usable Length (LU) | 154.8 mm | Cutting Diameter Maximum (DCX) | 51 mm |
| Application | | General Drilling | | Flange Diameter (DF) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 1.8 mm |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Shank Length (LS) | 69 mm | Master Insert Identification (MIID) | WWMU13X512R-DJ |
| Functional Length (LF) | 194 mm | Body Material | Steel |
| Overall Length (OAL) | 264.8 mm |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=3, Flat cotter | Country of Origin | Japan |
Shipping Info
Package Weight
5.468
