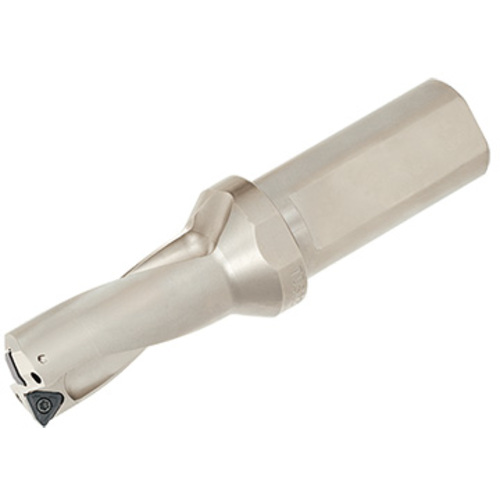

TDS400F40-2
Indexable Insert Drill; 40 mm Dia. × 81.6 mm LU × 40 mm Shank Dia. × 183.6 mm OAL ; Steel

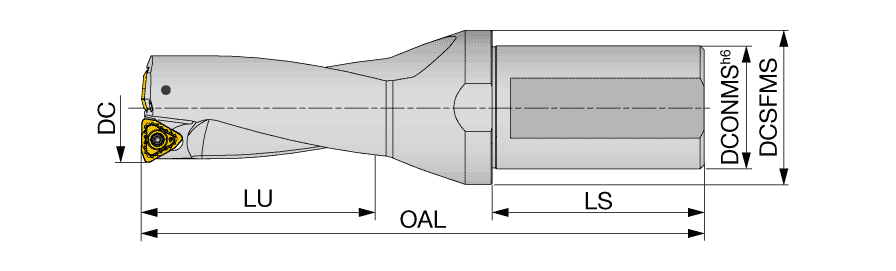

| Cutting Diameter (DC) | 40 mm | Cutting Diameter Minimum (DCN) | 40 mm |
| Usable Length (LU) | 81.6 mm | Cutting Diameter Maximum (DCX) | 40 mm |
| Application | | General Drilling | | Flange Diameter (DF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 1.6 mm |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Shank Length (LS) | 69 mm | Master Insert Identification (MIID) | WWMU11X512R-DJ |
| Functional Length (LF) | 113 mm | Body Material | Steel |
| Overall Length (OAL) | 183.6 mm |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=2, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.223
