C6TDX250L121-3

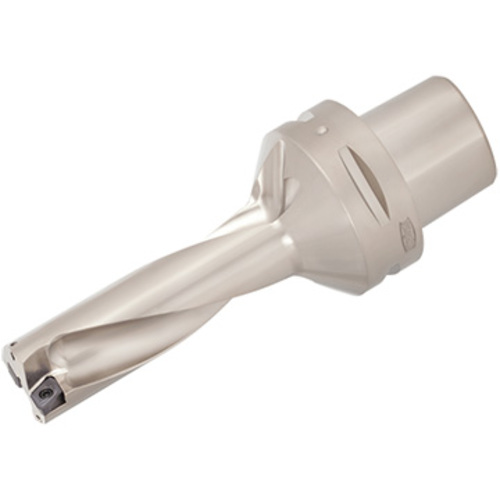

Indexable Insert Drill; 25 mm Dia. × 75.6 mm LU × 63 mm Shank Dia. × 159.58 mm OAL ; Steel

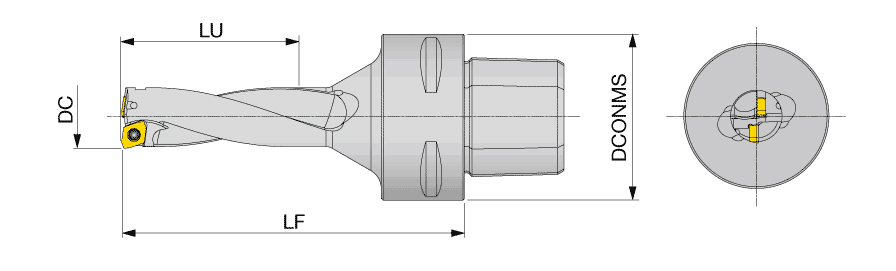

| Cutting Diameter (DC) | 25 mm | Cutting Diameter Minimum (DCN) | 25 mm |
| Usable Length (LU) | 75.6 mm | Cutting Diameter Maximum (DCX) | 25 mm |
| Application | | Face contact interface | General Drilling | | Point Length (PL) | 0.58 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Functional Length (LF) | 121 mm | Master Insert Identification (MIID) | XPMT07H308R-DJ |
| Overall Length (OAL) | 159.58 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills with TungCap Exchangeable Shanks, L/D=3 | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant |
