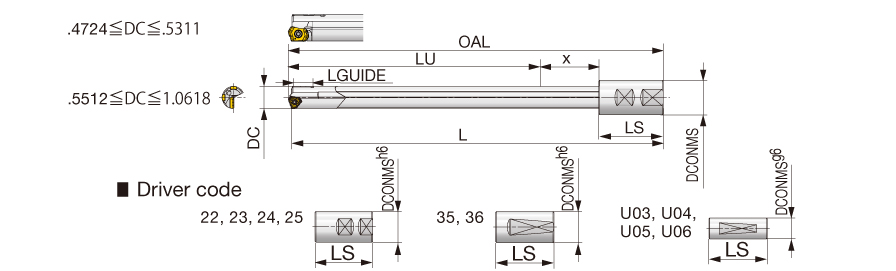

TRLG13.49X1219-U04
Indexable Insert Drill; 0.5311″ Dia. × 44.52″ LU × 1″ Shank Dia. × 48.063″ OAL ; Steel
| Cutting Diameter (DC) | 0.5311″ | Cutting Diameter Minimum (DCN) | 0.5311″ |
| Usable Length (LU) | 44.52″ | Cutting Diameter Maximum (DCX) | 0.5311″ |
| Application | | Gundrill | | Point Length (PL) | 0.071″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Shank Length (LS) | 2.756″ | Master Insert Identification (MIID) | LOGT060204R-NDJ |
| Functional Length (LF) | 45.236″ | Body Material | Steel |
| Overall Length (OAL) | 48.063″ | Decimal Equivalent | 0.5311″ |
Product Features
| Family Description | Drill body for gun drill machine | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
