MCTR26.97XU31.75X-25

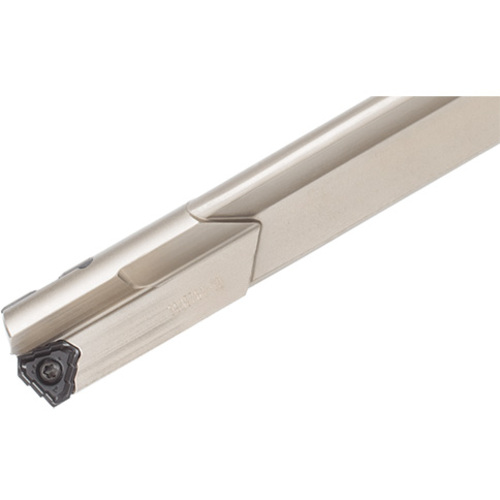

Indexable Insert Drill; 1.0618″ Dia. × 27.701″ LU × 1-1/4″ Shank Dia. × 32.228″ OAL ; Steel

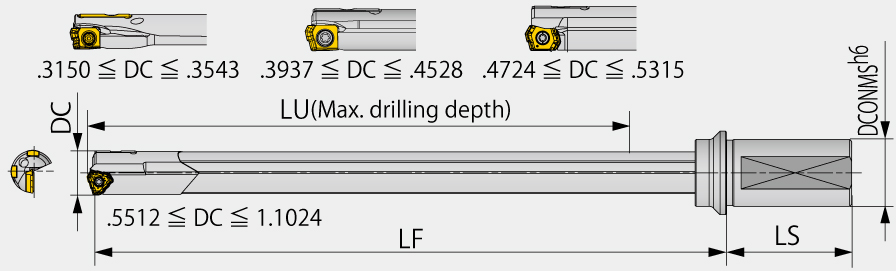

| Cutting Diameter (DC) | 1.0618″ | Cutting Diameter Minimum (DCN) | 1.0618″ |
| Usable Length (LU) | 27.701″ | Cutting Diameter Maximum (DCX) | 1.0618″ |
| Application | | General Drilling | | Point Length (PL) | 0.142″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Shank Length (LS) | 2.362″ | Master Insert Identification (MIID) | TOHT120405R-NDJ |
| Functional Length (LF) | 29.724″ | Body Material | Steel |
| Overall Length (OAL) | 32.228″ | Decimal Equivalent | 1.0618″ |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D = 25 | Country of Origin | JAPAN |

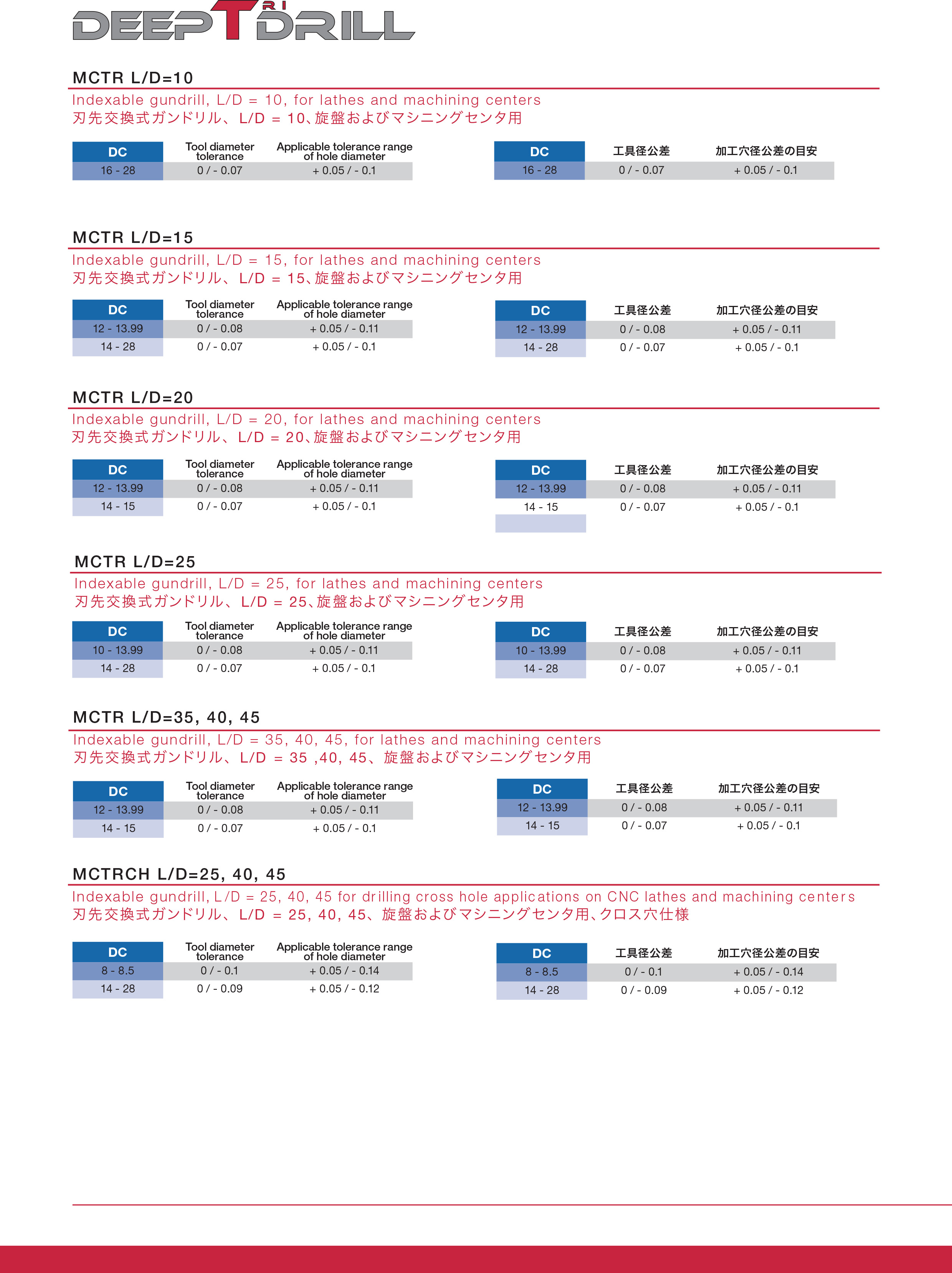

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the More Info. |
