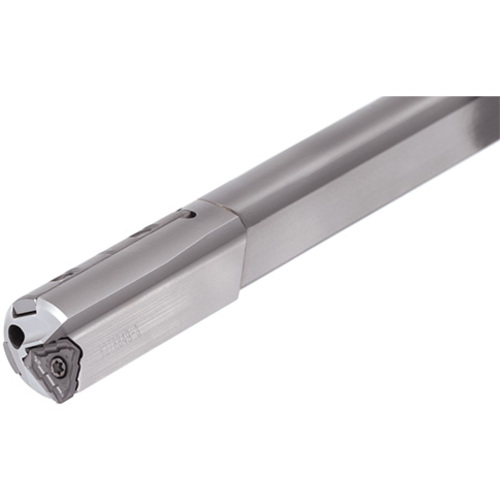

TRLGCH23.80X1830-U05

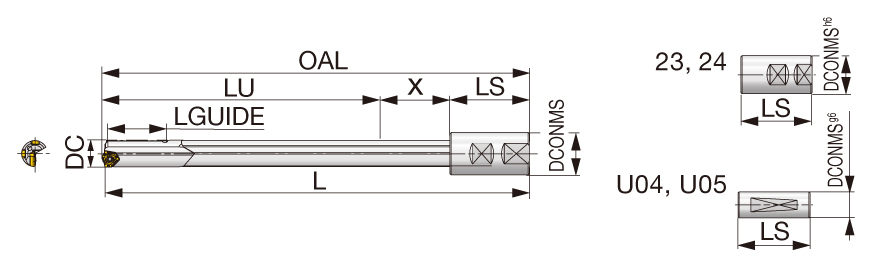

Indexable Insert Drill; 0.937″ Dia. × 68.008″ LU × 1-1/4″ Shank Dia. × 72.181″ OAL ; Steel
| Cutting Diameter (DC) | 0.937″ | Cutting Diameter Minimum (DCN) | 0.937″ |
| Usable Length (LU) | 68.008″ | Cutting Diameter Maximum (DCX) | 0.937″ |
| Application | | Gundrill | | Point Length (PL) | 0.134″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | TOHT11... |
| Shank Length (LS) | 2.756″ | Body Material | Steel |
| Functional Length (LF) | 72.047″ | Decimal Equivalent | 0.937″ |
| Overall Length (OAL) | 72.181″ |
Product Features
| Family Description | Drill body for gun drill machine. For drilling cross holes. | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
Shipping Info
Package Weight
0.000
