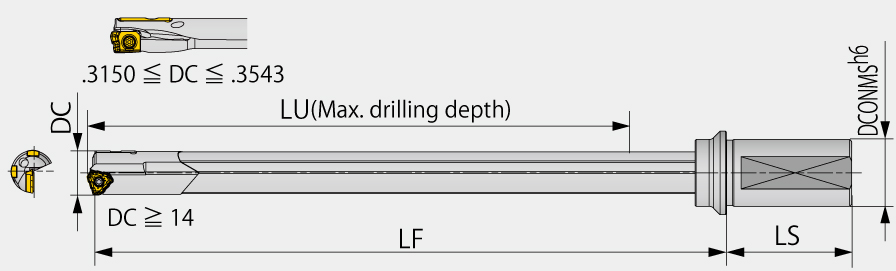

MCTRCH18.64XU25.4-25
Indexable Insert Drill; 0.734″ Dia. × 18.819″ LU × 1″ Shank Dia. × 22.677″ OAL ; Steel
| Cutting Diameter (DC) | 0.734″ | Cutting Diameter Minimum (DCN) | 0.734″ |
| Usable Length (LU) | 18.819″ | Cutting Diameter Maximum (DCX) | 0.734″ |
| Application | | General Drilling | | Point Length (PL) | 0.118″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Tool Type | Deep Hole / Gun Drill | Master Insert Identification (MIID) | TOHT09... |
| Shank Length (LS) | 2.205″ | Body Material | Steel |
| Functional Length (LF) | 20.354″ | Decimal Equivalent | 0.734″ |
| Overall Length (OAL) | 22.677″ |
Product Features
| Family Description | Indexable gundrill, L/D = 25, 40, 45 for drilling cross hole applications on CNC lathes and machining centers | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the Product Report. |
Shipping Info
Package Weight
1.411
