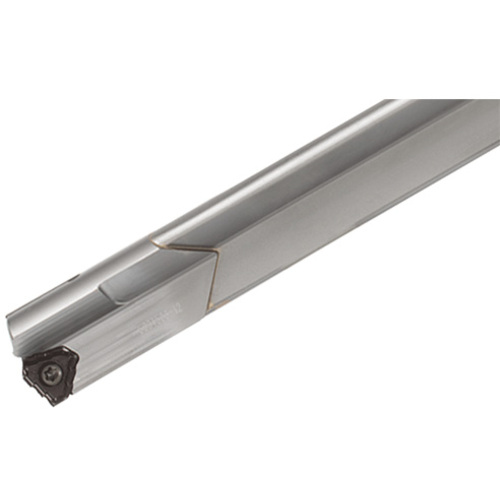

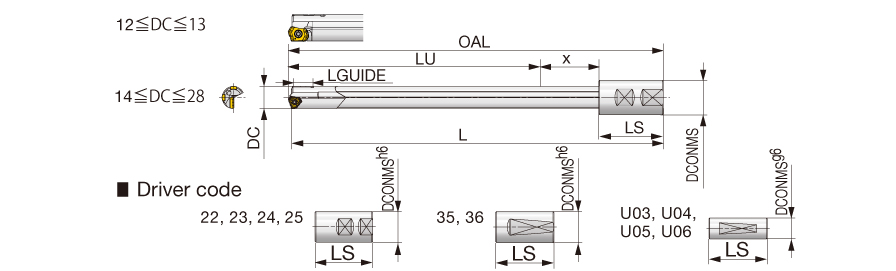

TRLG12.00X800-22
Indexable Insert Drill; 12 mm Dia. × 733.8 mm LU × 20 mm Shank Dia. × 801.8 mm OAL ; Steel
| Cutting Diameter (DC) | 12 mm | Cutting Diameter Minimum (DCN) | 12 mm |
| Usable Length (LU) | 733.8 mm | Cutting Diameter Maximum (DCX) | 12 mm |
| Application | | Gundrill | | Point Length (PL) | 1.8 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Shank Length (LS) | 50 mm | Master Insert Identification (MIID) | LOGT060204R-NDJ |
| Functional Length (LF) | 750 mm | Body Material | Steel |
| Overall Length (OAL) | 801.8 mm |
Product Features
| Family Description | Drill body for gun drill machine | Country of Origin | Japan |

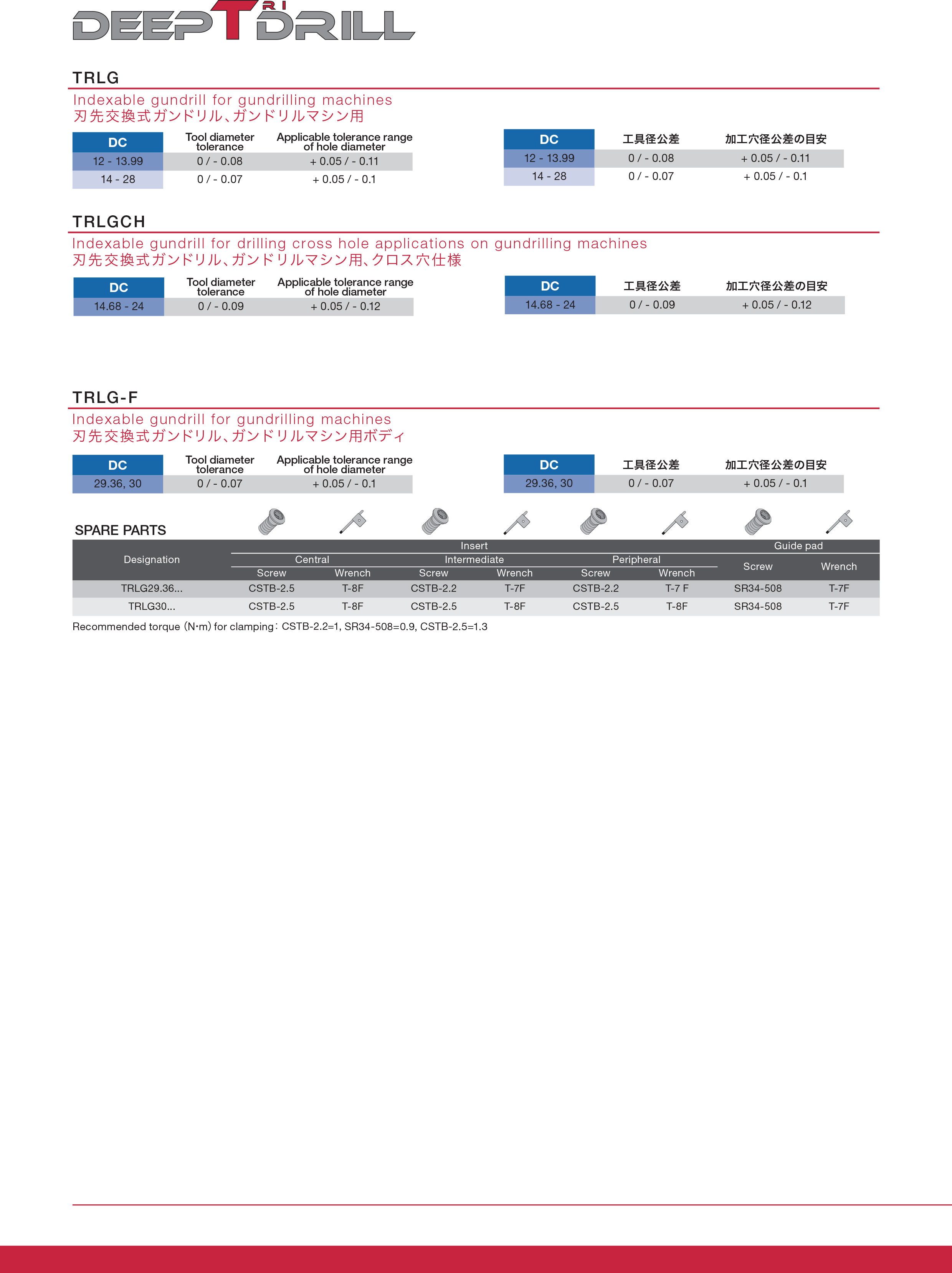

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
Shipping Info
Package Weight
0
Related Documentation
