TRLG30.00X1650-FM40

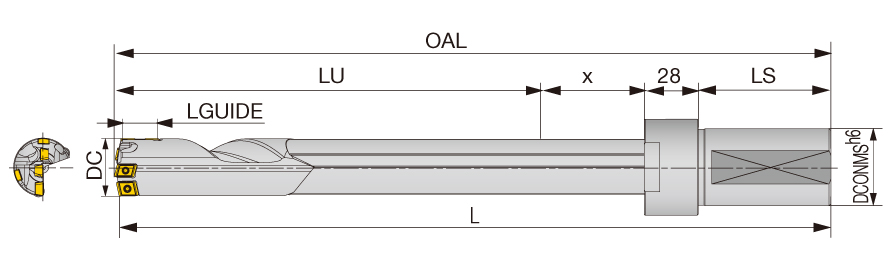

Indexable Insert Drill; 30 mm Dia. × 1510.9 mm LU × 40 mm Shank Dia. × 1652.9 mm OAL ; Steel
| Cutting Diameter (DC) | 30 mm | Overall Length (OAL) | 1652.9 mm |
| Usable Length (LU) | 1510.9 mm | Cutting Diameter Minimum (DCN) | 30 mm |
| Application | | Gundrill | | Cutting Diameter Maximum (DCX) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 2.9 mm |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Shank Length (LS) | 69 mm | Master Insert Identification (MIID) | FBM070408L-G-C |
| Functional Length (LF) | 1581 mm | Body Material | Steel |
Product Features
| Family Description | Drill body for gun drill machine | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". Max. DC = 40: Available tailor made tools The drill body surface is blackened for corrosion resistance and may appear uneven. This, however, will not affect the performance of the drill. For spare parts, click on "More Info". |
Shipping Info
Package Weight
0.000
