MCTR22.23XU31.75-10
Indexable Insert Drill; 7/8″ Dia. × 9.189″ LU × 1-1/4″ Shank Dia. × 13.441″ OAL ; Steel

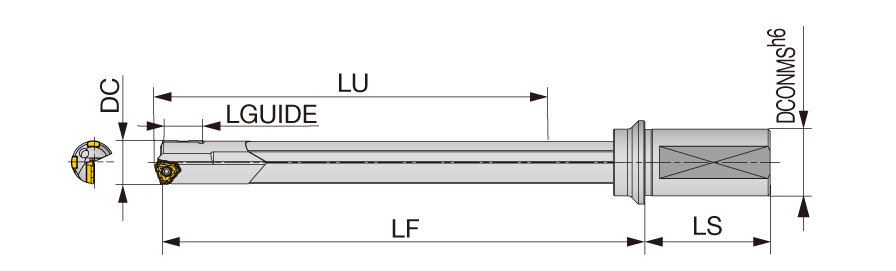

| Cutting Diameter (DC) | 7/8″ | Cutting Diameter Minimum (DCN) | 7/8″ |
| Usable Length (LU) | 9.189″ | Cutting Diameter Maximum (DCX) | 7/8″ |
| Application | | General Drilling | | Point Length (PL) | 0.134″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Shank Length (LS) | 2.362″ | Master Insert Identification (MIID) | TOHT110405R-NDJ |
| Functional Length (LF) | 10.945″ | Body Material | Steel |
| Overall Length (OAL) | 13.441″ | Decimal Equivalent | 0.875″ |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D = 10 | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the More Info. |
Shipping Info
Package Weight
1.894
