MCTR11.11XU19.05-45

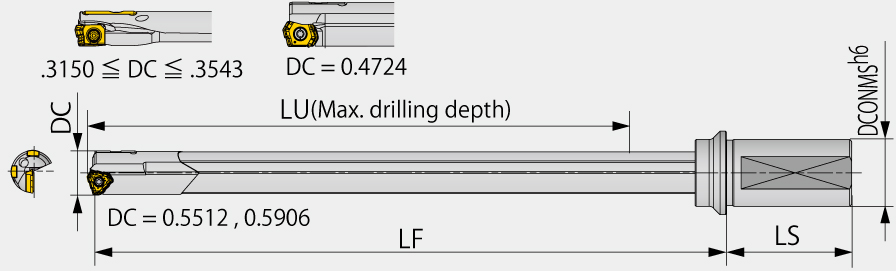

Indexable Insert Drill; 0.4374″ Dia. × 21.327″ LU × 3/4″ Shank Dia. × 24.437″ OAL ; Steel
| Cutting Diameter (DC) | 0.4374″ | Cutting Diameter Minimum (DCN) | 0.4374″ |
| Usable Length (LU) | 21.327″ | Cutting Diameter Maximum (DCX) | 0.4374″ |
| Application | | General Drilling | | Point Length (PL) | 0.067″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Shank Length (LS) | 1.969″ | Master Insert Identification (MIID) | ZSGT060204R-NDJ |
| Functional Length (LF) | 22.402″ | Body Material | Steel |
| Overall Length (OAL) | 24.437″ | Decimal Equivalent | 0.4374″ |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D (ULDR) = 35, 40, 45 | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the Product Report. |
Shipping Info
Package Weight
1.301
