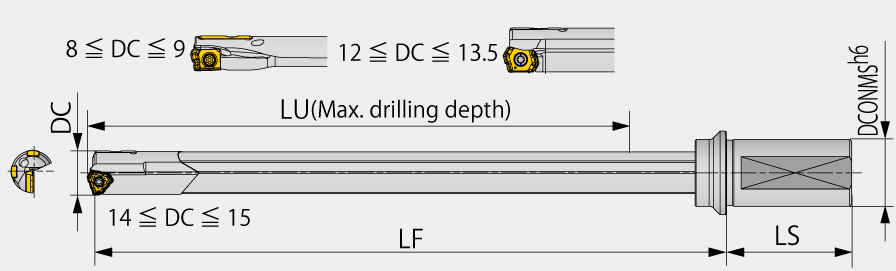

MCTR14.00XM25-20
Indexable Insert Drill; 14 mm Dia. × 302 mm LU × 25 mm Shank Dia. × 394 mm OAL ; Steel
| Cutting Diameter (DC) | 14 mm | Cutting Diameter Minimum (DCN) | 14 mm |
| Usable Length (LU) | 302 mm | Cutting Diameter Maximum (DCX) | 14 mm |
| Application | | General Drilling | | Point Length (PL) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Shank Length (LS) | 56 mm | Master Insert Identification (MIID) | TOHT070304R-NDJ |
| Functional Length (LF) | 336 mm | Body Material | Steel |
| Overall Length (OAL) | 394 mm |
Product Features
| Family Description | Drill body for lathes and machining centers, L/D = 20 | Country of Origin | JAPAN |
| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the More Info. |
Shipping Info
Package Weight
1.144
