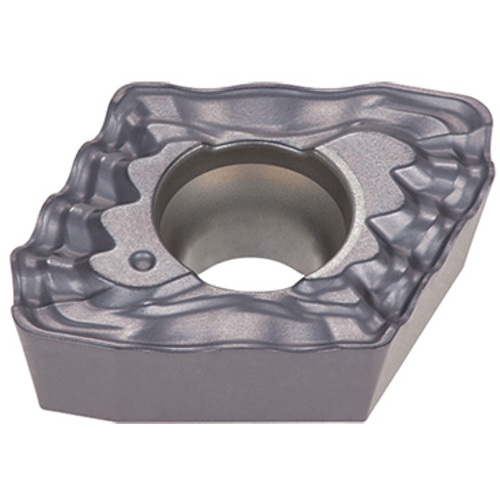

XPMT110412R-DG AH725

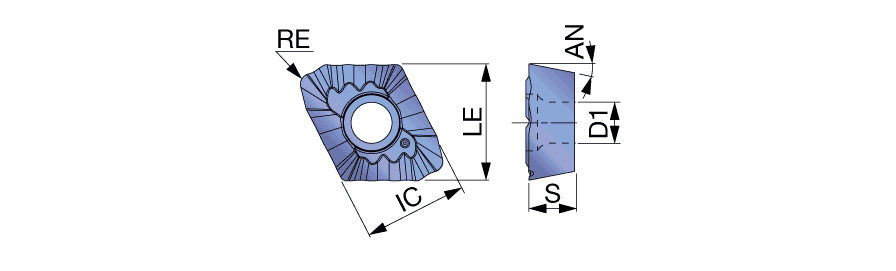

Drill Insert; 0.441″ Length × 0.492″ Width × 0.187″ Thickness × 0.441″ IC × 0.0472″ Corner Radius ; Carbide ; TiAlN ; AH725
| Cutting Edge Length (L) | 0.441″ | Grade | AH725 |
| Insert Width (W1) | 0.492″ | Application | | General Drilling | |
| Insert Thickness (S) | 0.187″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 0.441″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Indexable drilling inserts |
| Fixing Hole Diameter (D1) | 0.17″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | TungDrill insert with DG chipbreaker for mild steel | Country of Origin | Japan |
Shipping Info
Package Weight
0.018
