XPMT08T308R-DS AH725

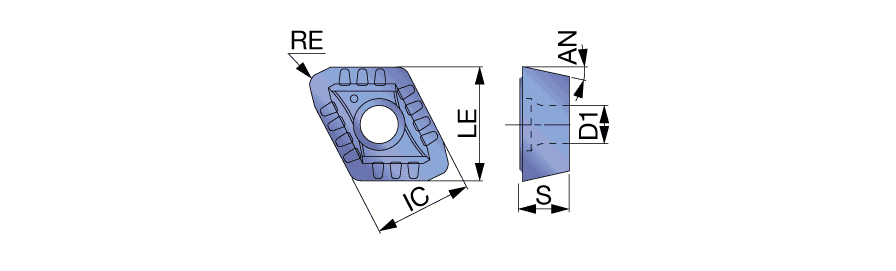

Drill Insert; 8.5 mm Length × 9.9 mm Width × 3.97 mm Thickness × 8.5 mm IC × 0.8 mm Corner Radius ; Carbide ; TiAlN ; AH725
| Cutting Edge Length (L) | 8.5 mm | Grade | AH725 |
| Insert Width (W1) | 9.9 mm | Application | | General Drilling | |
| Insert Thickness (S) | 3.97 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 8.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Indexable drilling inserts |
| Fixing Hole Diameter (D1) | 3.4 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | TungDrill insert with DS chipbreaker for stainless steel drilling | Country of Origin | Japan |
Shipping Info
Package Weight
0.008
