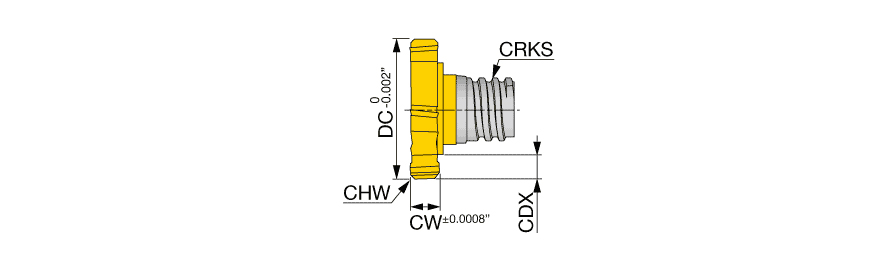

VTB05W062C006-U06S05 GH730
End Mill Head; 1/2″ Dia. × 0.062″ LOC ; 6 FL ; Carbide ; TiCNO ; GH730
| Application | | Slot Milling | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 1/2″ | Grade | GH730 |
| Applicable Material | | Steel | Stainless Steel | | Coating | TiCNO |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 9 Degrees |
| Cutting Diameter Maximum (DCX) | 1/2″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.062″ | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 0.062″ | Tool Type | Solid "T" slot cutters |
| Functional Length (LF) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | Slotting, 6 flutes, for T-slotting with 45 degree chamfer | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
