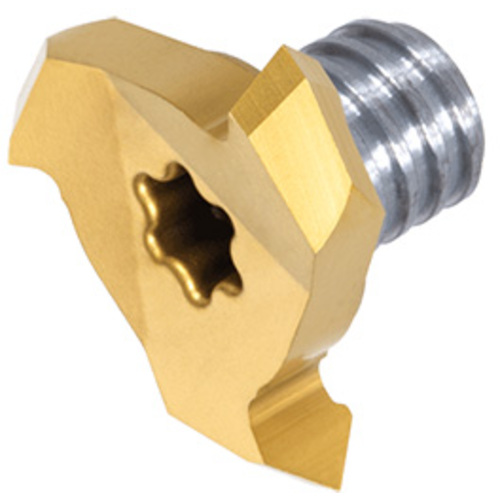

VST177L01.40A45-3S06 GH730
End Mill Head; 17.7 mm Dia. × 3.4 mm LOC ; 3 FL ; Carbide ; TiCNO ; GH730

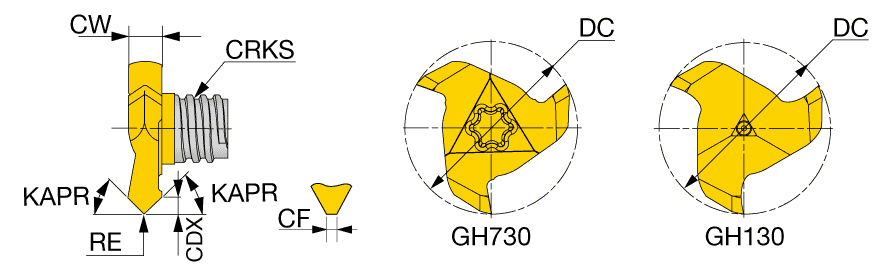

| Application | | Multi Functional tools | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 17.7 mm | Grade | GH730 |
| Applicable Material | | Steel | Stainless Steel | | Coating | TiCNO |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Corner Radius (RE) | 0.1 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 17.7 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3.4 mm | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 3.4 mm | Body Material | Carbide |
| Functional Length (LF) | 1.69 mm |
Product Features
| Family Description | Slotting, 3, 4 flutes, for slotting with 45 degree chamfer | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
