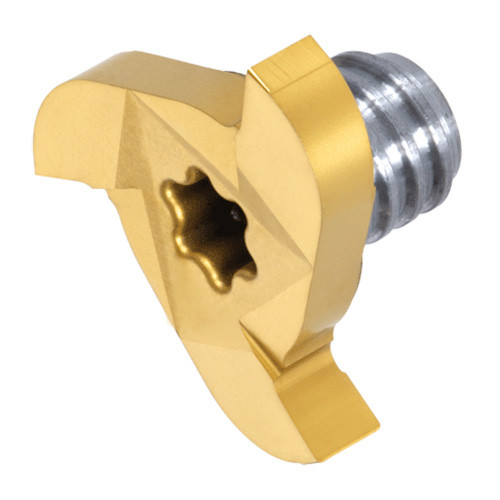

VST217W1.70R010-4S08 GH730
End Mill Head; 0.8543″ Dia. × 0.067″ LOC ; 4 FL ; Carbide ; TiCNO ; GH730
| Application | | Slot Milling | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 0.8543″ | Grade | GH730 |
| Applicable Material | | Steel | Stainless Steel | | Coating | TiCNO |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0039″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.8543″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.067″ | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 0.067″ | Body Material | Carbide |
| Functional Length (LF) | 0.072″ |
Product Features
| Family Description | Slotting, 3, 4, 6 flutes, for slotting | Country of Origin | Israel |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench not included. |
Shipping Info
Package Weight
16.5
