VBL080L0.90R160-6S05 AH715

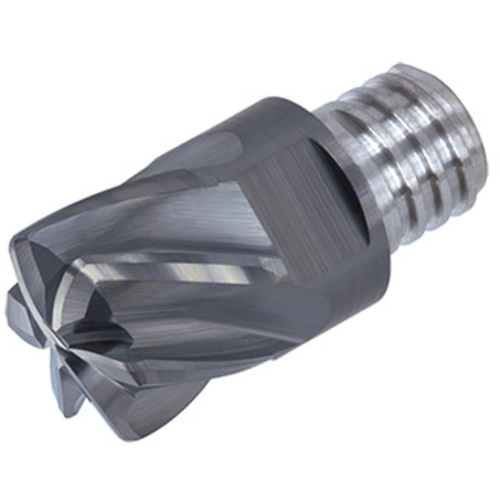

End Mill Head; 8 mm Dia. × 5.5 mm LOC ; 6 FL ; Carbide ; TiAlSiCrN ; AH715

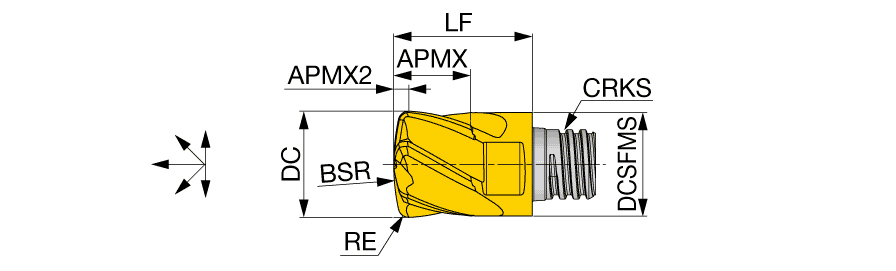

| Application | | Profile Milling | | Functional Length (LF) | 10 mm |
| Cutting Diameter (DC) | 8 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH715 |
| Flute Count (NOF) | 6 | Coating | TiAlSiCrN |
| Corner Radius (RE) | 0.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5.5 mm | Body Material | Carbide |
Product Features
| Family Description | Lens, 6 flutes, semi finishing - finishing, high productive profiling | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
