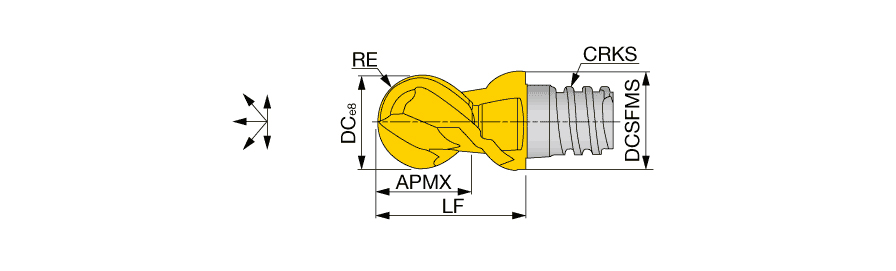

VBD0375L27-BG-U02S06 AH725
End Mill Head; 3/8″ Dia. × 0.275″ LOC ; 2 FL ; Carbide ; TiAlN ; AH725
| Application | | Profile Milling | | Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Diameter (DC) | 3/8″ | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.188″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/8″ | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 0.275″ | Body Material | Carbide |
| Functional Length (LF) | 0.512″ |
Product Features
| Family Description | Ball, 2 flutes, semi finishing - finishing, helix cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
