VGC056L46R016-U02S08 AH725

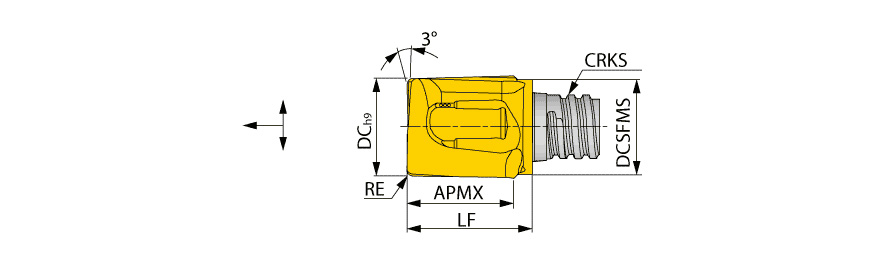

End Mill Head; 0.562″ Dia. × 0.46″ LOC ; 2 FL ; Carbide ; TiAlN ; AH725
| Application | | Multi Functional tools | | Flute Helix Angle (FHA) | 10 Degrees |
| Cutting Diameter (DC) | 0.562″ | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.016″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.46″ | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 0.59″ | Body Material | Carbide |
Product Features
| Family Description | Counterboring, 2 flutes, for counterboring (can be used for milling) | Country of Origin | ISRAEL |
| Remarks | Can drill with step feed Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
