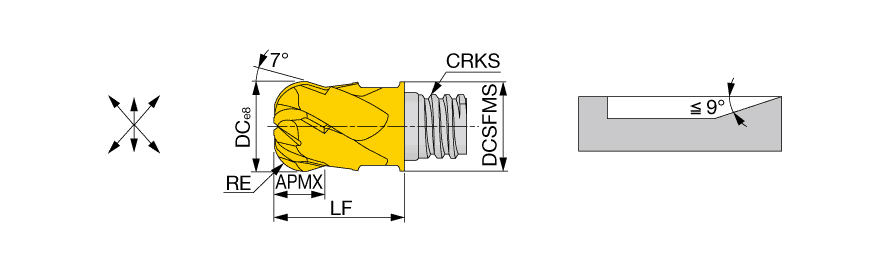

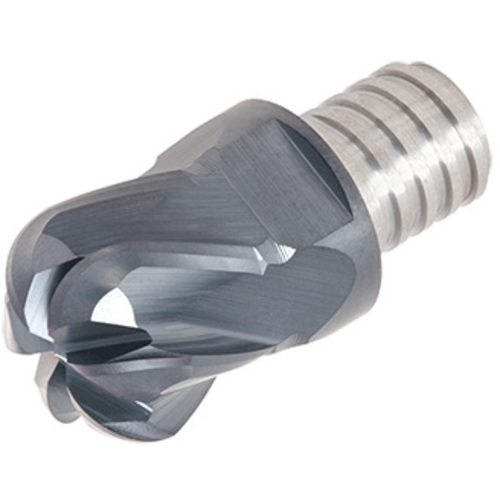

VRD050L27R062-U06S08 AH725
End Mill Head; 1/2″ Dia. × 0.27″ LOC ; 6 FL ; Carbide ; TiAlN ; AH725
| Application | | Profile Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 1/2″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.062″ | Maximum Feed per Tooth (fz(max)) | 0.0051 in/tooth |
| Cutting Diameter Maximum (DCX) | 1/2″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.27″ | Tool Type | Solid corner rounding endmills |
| Functional Length (LF) | 0.65″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | Radius, 6 flutes, semi finishing - finishing, helix cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
